SMA Female RF Coaxial Connector – Two-Hole Flange Mount, Compatible with 2# Semi-Flexible Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KFB2

Certification : ISO9001-2017, RoHS, CE

Price : Discuss

Packaging Details : master carton

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Female RF Coaxial Connector – Two-Hole Flange Mount, Compatible with 2# Semi-Flexible Cable

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Female RF Coaxial Connector – Two-Hole Flange Mount, Compatible with 2# Semi-Flexible Cable

Product Overview

The SMA series is a widely used RF coaxial connector with a threaded coupling mechanism. Known for its compact size, strong environmental resistance, and excellent electrical performance, it is ideal for high-frequency signal transmission in demanding conditions. It conforms to international standards and supports stable, long-term operation.

Applications
Telecommunications, wireless communication systems, antennas, test and measurement equipment, and microwave applications.

Key Features

Compatible with 2# semi-flexible or semi-rigid RF coaxial cables

Two-hole flange mount for secure and vibration-resistant installation

Wide frequency bandwidth with stable electrical characteristics

High reliability and consistent RF performance

Compact size and easy to solder, ideal for modular integration

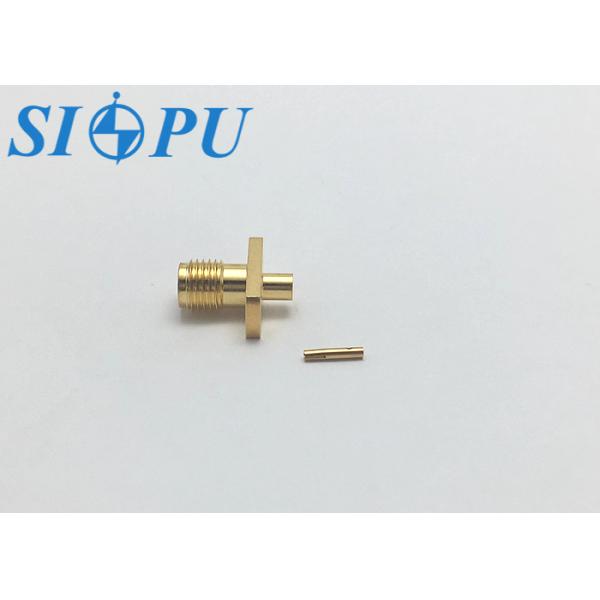

Product Appearance

SMA Female RF Coaxial Connector – Two-Hole Flange Mount, Compatible with 2# Semi-Flexible Cable

Important Technical Parameter

Electrical property

Temperature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-18GHz

Dielectric withstanding voltage

1000V

VSWR

≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500 times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

/

/


Product Image Gallery

SMA Female RF Coaxial Connector – Two-Hole Flange Mount, Compatible with 2# Semi-Flexible CableSMA Female RF Coaxial Connector – Two-Hole Flange Mount, Compatible with 2# Semi-Flexible Cable
